Product Description

Vehicle Model Fit For

2012-2015 Toyota Tacoma

Position/Plug Type:
High-Low beam: H4
Fog Light: H11
Back Up Light: T15/921

Brake Light Bulb: 3157

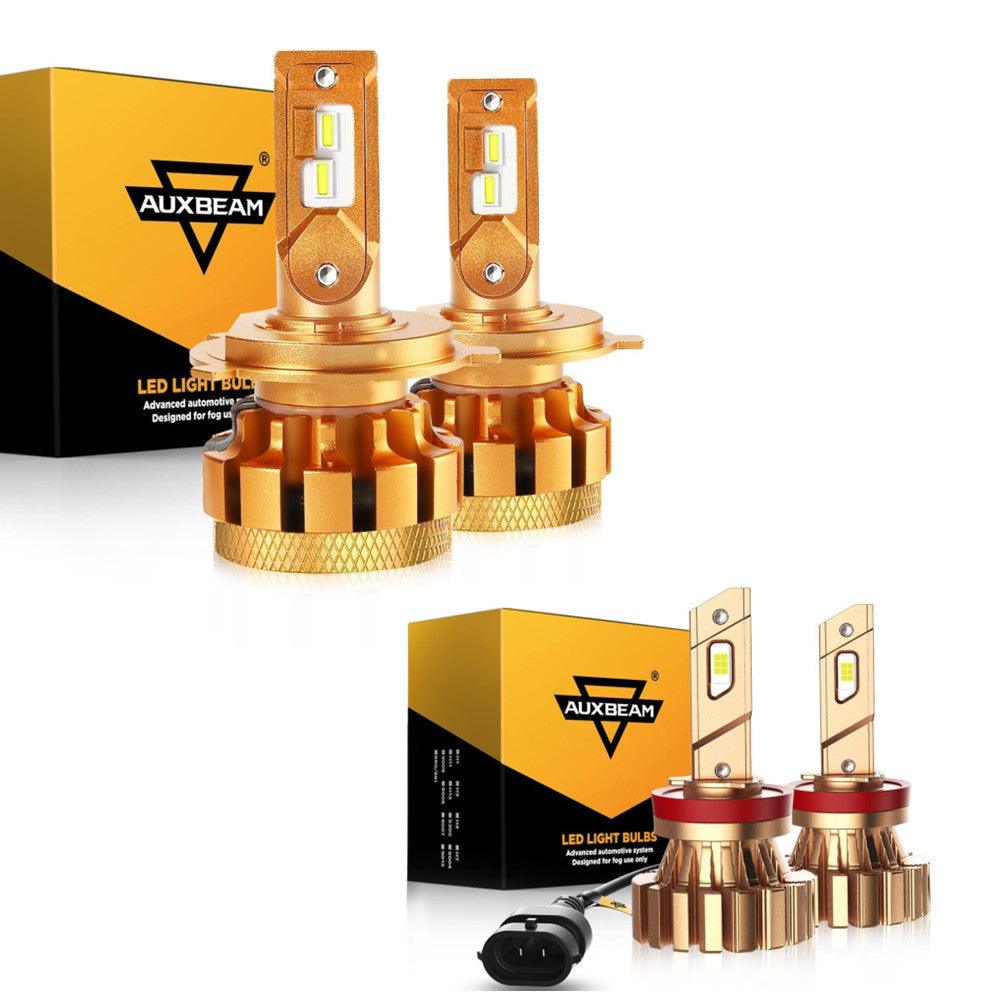

F16PLUS Features:
-Upgraded version of F16 series, CSP3570 LED chips, 6500k white, high efficient luminance output.
-0.04inch slimmest side designed, ultra-thin lampstandard design to provide wider viewing angle.
-Compact all-in-one integrated design, external drive, built-in canbus, self-contained decoding to avoid error codes.
-Aviation aluminum with high thermal conductivity, built-in ball-bearing fan with 12000R/Min, maximum heat dissipation.
-Built-in IC, EMC tech avoid current frequency noise caused by electromagnetic interference.
-All round water proof safe lighting IP68.

SPECIFICATIONS:
Plug Type: H4/9003 Hi-lo Beam
LED Type: CSP 3570 Automotive Grade
Efficacy(2/pcs): 70W
LED Quantity: 12pcs (single light) 24pcs (twin light)
Raw Lumen(2/pcs): 14000 LM
Current Draw: 2.5 A
Operating Voltage: 9-12V
Color:Natural White
Color Temperature : 6000K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Fan Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature: -45 celsius degree~150 celsius degree
CAN BusYes

Fits 98% of vehicles: In-built fully upgraded CANbus.
Some sensitive cars may flicker after installed(not quality issue),
specific canbus decoders are needed.

Note:
-Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item.

X60 FANLESS Features:

COMPACT SILENT DESIGN
NO FAN REDUCE FAILURE EXTEN LIFESPAN
COMFORT&SAFETY BRIGHTNESS
-44W 12000LM Upgraded CSP chipsets superior brightness.
-Aviation 6063 aluminum profile improved heat dissipation performance.
-Built-in IC, EMC protect avoid current noisy or flicker

SPECIFICATIONS:
Plug Type: H11
LED Type: CSP3570
Efficacy(2/pcs): 44W
LED Quantity(per bulb): 12pcs
Raw Lumen(2/pcs): 12000 LM
Current Draw: 1.8A
Operating Voltage: 9-12V
Colour: Cool White
Color Temperature : 6500K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Aluminum Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature: -45 celsius degree~150 celsius degree

CAN BusNo
Note: fits 98% of vehicles;
Some sensitive cars may flicker after installed(not quality issue),
additional canbus decoders are needed.
