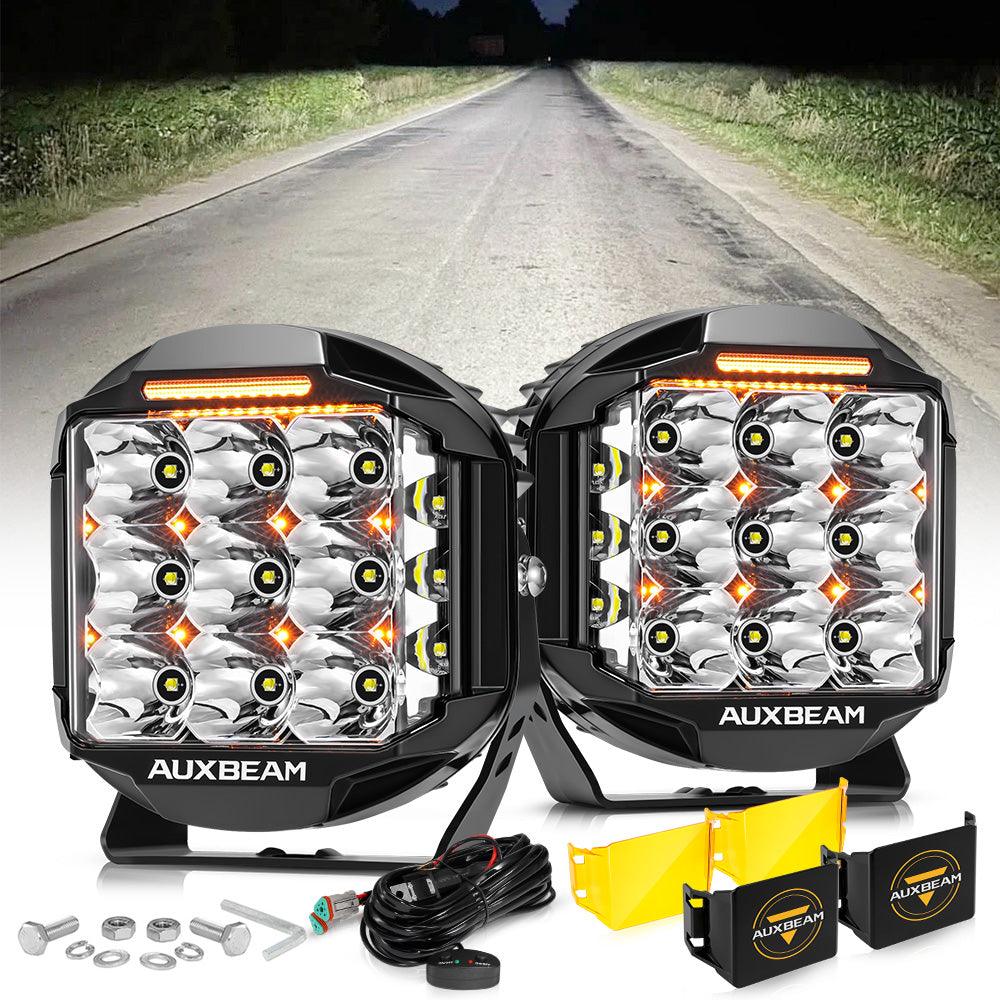

V MAX Series 7 Inch 228W 26100LM LED Round Driving Lights with Combo Beam, Amber DRL & Backlight - Perfect for Off-Road Trucks, Jeeps, ATVs and Night Driving Adventures

Product Description

7 Inch V-MAX Series Driving Lights

Features:

Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.
Trusted Brightness: Employ top-notch led chips, total 114 watts per light, with lighting performance 13050LM/PC. Features a trusted brighter long-lasting light, and a clearer, wider, and further visual area. Lifespan extends over 50,000H.
3 Light Modes: Side shooter light and front spot light together are main lighting mode to provide a clearer, wider and further visibility for your night time driving. While amber DRL is a daytime lighting mode to add extra safety by capturing other drivers' notices of your presence on the road. Both modes can be used simultaneously.Combining three modes, it’s the perfect light to ensure your safety throughout the whole day.
Easy Installation: Our LED lights come with a plug-and-play wiring harness kit.Say goodbye to the tedious installation process and hello to hassle-free lighting.
Wide Application: Side shooter LED Lights fits in most vehicles with 10-24V DC power,Such as Trucks Jeep Boat Trailer ATV Off road vehicles, 4x4, Toyota, SUV, Mining, Boating, Farming and Heavy Duty, motorcycle etc.

Specification:

Size: 7 Inch
Power/Set: 114W*2 (Spotlights 105W+Amber DRL&Back Light 9W)=228W
Total Lumens: 26100LM (25200LM+Amber DRL&Back Light 900LM)
Lamp Beads Model(Each): LUMINUS SST-20F 10W/PCS*15+2835 SMD*24
Lighting Distance1 LUX@689M
Beam Pattern: Spot Light+Double-Side Shooter Light
Light Color: Amber/White+Amber DRL&Backlight
Color Temperature: 6500K White/3000K Amber
With EMC/EMIYes
Life Time: 50000+ hours
Waterproof Rate: IP68
Lens Material: PC
Housing Material: Aluminum Alloy
Fit Model: UniversalM10 screw mounting
Working Voltage: 12V-24V(Wiring harness Relay is 12V Onlycan be replaced with 24V)

Packing Included:

2 X LED Driving LightsWith DT Plug
2 X Amber Light Cover
1 X Wiring HarnessWith DT Plug
1 X Srew Accessories

6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National StandardDRL 18AWG
Wire Material: 5 mm² Copper WireDRL 0.75mm²
Working Voltage: 12VReplaceable 24V relay
Delay: Double 12V delay

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384WCurrent 40A	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480WCurrent 40A	50A
